LNACD Series “The Ammo”

LED Driver

Description

The Ammo is a Constant Current High-Efficiency LED Driver that is part of Autec's tariff relief line of high-efficiency power solutions. It features 347Vac of input voltage and an output range of 1800–2100mA. Furthermore, this series is available in power ratings of 60W and 90W. The Ammo has a wide range of features and options including 3 in 1, 0–10V, PWM, Resistance dimming as well as multiple outputs, and a surge rating of 2KV. The Ammo is suitable for indoor or outdoor applications with an IP65 rating. Finally, this product is UL recognized, UL Class 2 rated to ensure quality and dependability.

LNACD Series “The Ammo”
End of life alternative

Specifications

Case Type:

Metal

Input Voltage:

347Vac(120-347Vac)

Design:

Constant Current (CC)

Output Range:

1800mA-2100mA

Output Current Per Channel:

0.45A, 0.7A

Power Ratings:

60W | 90W

Class:

UL Recognized, UL Class 2

Features/Options:

Made-in-Taiwan

Multiple Outputs

Triple Output models

Quad Output models

Surge Rating 2KV

IP65

Dimming:

3 in 1 Dimming

0-10V, PVM, Resistance

Applications:

Indoor or Outdoor

Description

The Ammo is a Constant Current High-Efficiency LED Driver that is part of Autec's tariff relief line of high-efficiency power solutions. It features 347Vac of input voltage and an output range of 1800–2100mA. Furthermore, this series is available in power ratings of 60W and 90W. The Ammo has a wide range of features and options including 3 in 1, 0–10V, PWM, Resistance dimming as well as multiple outputs, and a surge rating of 2KV. The Ammo is suitable for indoor or outdoor applications with an IP65 rating. Finally, this product is UL recognized, UL Class 2 rated to ensure quality and dependability.

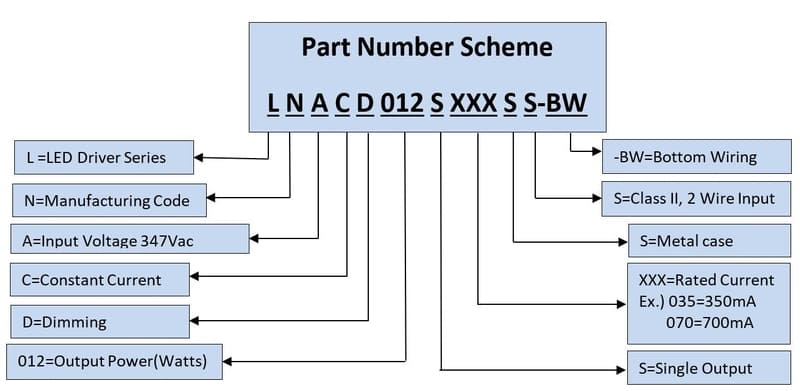

Model Numbers

LNACD060Q045SS-65, LNACD090T070SS-65

Legacy Model Numbers
