LGUV- Series "The Goliath"

LED Driver

Description

"The Goliath" a plastic Led Driver with constant voltage and an output range of 1500-3000ma. Two output voltages of 12 and 24 volts with a power rating of 36 watts. A low cost solution with IP67 and Class 2 power design all without an earth pin. This device is perfect for indoor and outdoor operation in dry, damp and wet locations all with a no load consumption of <0.5 watts at 230 Vac.

LGUV- Series "The Goliath"
End of life alternative

Specifications

Case Type:

Plastic

Input Voltage:

90-264Vac

Design:

Constant Voltage (CV)

Output Range:

1500-3000mA

Output voltage:

12V, 24V

Power Ratings:

36W

Class:

UL/cUL(Pending)

Features/Options:

IP67

Class II Power Design without earth pin

No Load Consumption <0.5W at 230Vac

Applications:

Indoor & Outdoor

Dry, Damp, & Wet Locations

Description

"The Goliath" a plastic Led Driver with constant voltage and an output range of 1500-3000ma. Two output voltages of 12 and 24 volts with a power rating of 36 watts. A low cost solution with IP67 and Class 2 power design all without an earth pin. This device is perfect for indoor and outdoor operation in dry, damp and wet locations all with a no load consumption of <0.5 watts at 230 Vac.

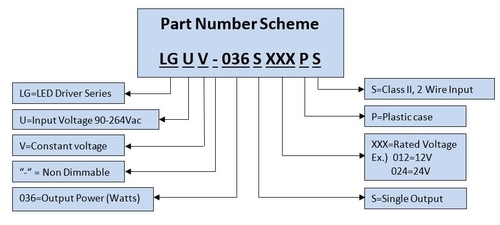

Model Numbers

LGUV-036S012PS, LGUV-036S024PS

Legacy Model Numbers
