LFWCX Series “The Elephant”

LED Driver

Description

"The Elephant" a linear metal enclosed constant current Led driver. With an input voltage of 120-277Vac and an output range of 250-2000Ma. Current selectable and options for 32, 47, 58 and 82 watts. This UL listed, class 2 driver features IP20, 12v/50Ma, Aux and current that can be selected via a pot switch. Dimmable features include 0-10v, pwm, timer and dim to off which makes this a perfect driver for indoor and outdoor use.

LFWCX Series “The Elephant”
End of life alternative

Specifications

Case Type:

Metal, Linear

Input Voltage:

120-277Vac

Design:

Constant Current (CC)

Output Range:

250-2000mA

Power Ratings:

32W | 47W | 58W | 82W

Class:

UL Listed, Class 2

Features/Options:

IP20

12V/50mA Aux

Programmable:

Current Selectable - POT Switch

Dimming:

0-10V, PWM, Timer, Dim-to-Off

Applications:

Indoor & Outdoor

Description

"The Elephant" a linear metal enclosed constant current Led driver. With an input voltage of 120-277Vac and an output range of 250-2000Ma. Current selectable and options for 32, 47, 58 and 82 watts. This UL listed, class 2 driver features IP20, 12v/50Ma, Aux and current that can be selected via a pot switch. Dimmable features include 0-10v, pwm, timer and dim to off which makes this a perfect driver for indoor and outdoor use.

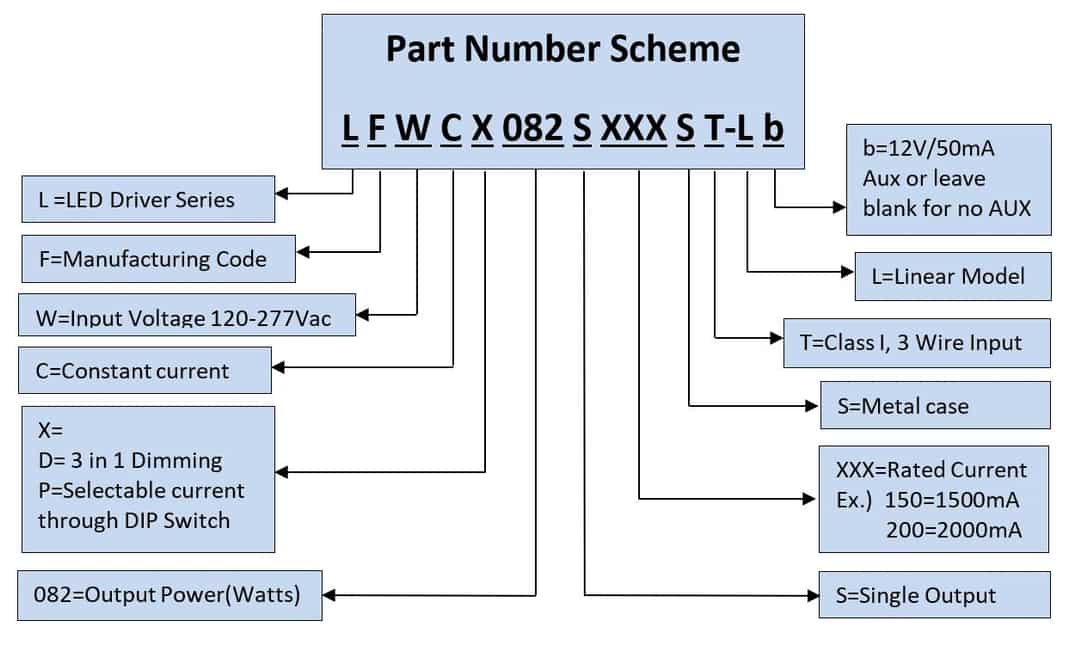

Model Numbers

LFWCD032S035ST-L, LFWCD032S055ST-L, LFWCD032S075ST-L, LFWCP032S075ST-L, LFWCD047S060ST-L, LFWCD047S082ST-L, LFWCD047S110ST-L, LFWCP047S110ST-L, LFWCD058S085ST-L, LFWCD058S105ST-L, LFWCD058S130ST-L, LFWCP058S130ST-L, LFWCD082S150ST-L, LFWCD082S160ST-L, LFWCD082S180ST-L, LFWCD082S190ST-L, LFWCD082S200ST-L, LFWCP082S200ST-L

Legacy Model Numbers
