LFACX Series “The Eagle”

LED Driver

Description

"The Eagle" a linear metal enclosed dimmable LED driver. With a constant current with 120-347Vac input voltage and a output range of 250-2000ma. It gives you the option for 32, 47, 58 and 82 watts while being UL listed and Class 2. This IP20 current selectable indoor and outdoor LED driver will give you 0-10v, PWM, Timer and dim to off options.

LFACX Series “The Eagle”
End of life alternative

Specifications

Case Type:

Metal, Linear

Input Voltage:

120-347Vac

Design:

Constant Current (CC)

Output Range:

250-2000mA

Power Ratings:

32W | 47W | 58W | 82W

Class:

UL Listed, Class 2

Features/Options:

IP20

12V/50mA Aux

Programmable:

Current Selectable - POT Switch

Dimming:

0-10V, PWM, Timer, Dim-to-Off

Applications:

Indoor & Outdoor

Description

"The Eagle" a linear metal enclosed dimmable LED driver. With a constant current with 120-347Vac input voltage and a output range of 250-2000ma. It gives you the option for 32, 47, 58 and 82 watts while being UL listed and Class 2. This IP20 current selectable indoor and outdoor LED driver will give you 0-10v, PWM, Timer and dim to off options.

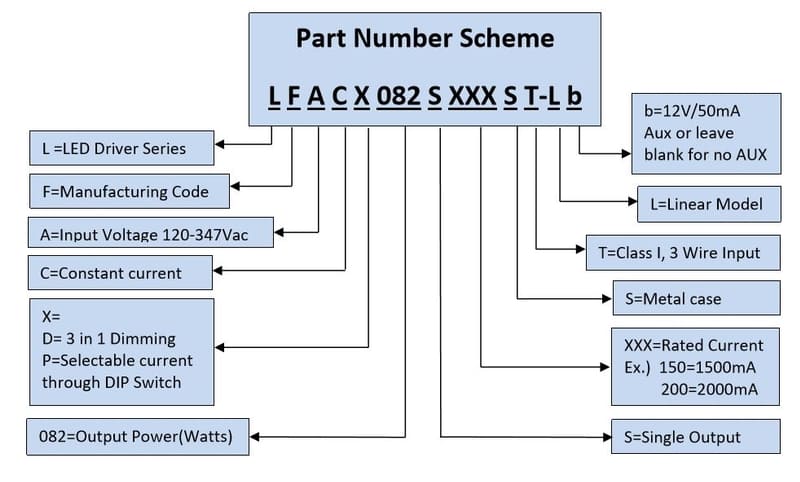

Model Numbers

LFACD032S035ST-L, LFACD032S055ST-L, LFACD032S075ST-L, LFACP032S075ST-L, LFACD047S060ST-L, LFACD047S082ST-L, LFACD047S110ST-L, LFACP047S110ST-L, LFACD058S085ST-L, LFACD058S105ST-L, LFACD058S130ST-L, LFACP058S130ST-L, LFACD082S150ST-L, LFACD082S160ST-L, LFACD082S180ST-L, LFACD082S190ST-L, LFACD082S200ST-L, LFACP082S200ST-L

Legacy Model Numbers
