L2HCP Series "The Revolution"

LED Driver

Description

The Revolution (L2HCP Series) is a Constant Power LED Driver. This unit features 277-480Vac/347-480Vac Input, and an Output Range of 270mA-20000mA. This high-efficiency unit is available in a metal case and available in power ratings of 96W, 160W, 250W, 350W and 720W models. The Revolution is a High Power UL Class 2, Class P, and Type HL driver suitable for Indoor & Outdoor Applications. Featuring Near field communication controller and dimming with 0-10v, PWM, Timer, and Dim-to-Off option.

L2HCP Series "The Revolution"
End of life alternative

Specifications

Case Type:

Metal, Aluminum

Input Voltage:

277-480Vac, 347-480Vac

Design:

Constant Power (CP, Constant Current/Constant Voltage, CC/CV)

Output Range:

270mA-20000mA

Power Ratings:

96W | 160W | 250W | 350W |  500W | 600W | 680W | 720W | 1200W

Class:

Class P, UL Class 2, Type HL

Features/Options:

12V 200mA Aux Power

High Power

Programmable:

Near Field Communication Controller

Dimming:

0-10V, PWM, Timer, Dim-to-Off

Applications:

Indoor & Outdoor

Description

The Revolution (L2HCP Series) is a Constant Power LED Driver. This unit features 277-480Vac/347-480Vac Input, and an Output Range of 270mA-20000mA. This high-efficiency unit is available in a metal case and available in power ratings of 96W, 160W, 250W, 350W and 720W models. The Revolution is a High Power UL Class 2, Class P, and Type HL driver suitable for Indoor & Outdoor Applications. Featuring Near field communication controller and dimming with 0-10v, PWM, Timer, and Dim-to-Off option.

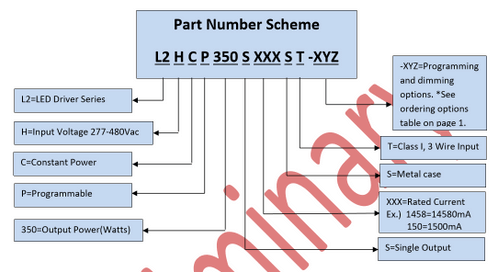

Model Numbers

L2HCP096S800SS-20, L2HCP096S400SS-20, L2HCP096S275SS-20, L2HCP096S200SS-20, L2HCP160S667ST, L2HCP160S444ST, L2HCP160S333ST, L2HCP160S200ST, L2HCP160S114ST, L2HCP160S069ST, L2HCP250S1042ST, L2HCP250S694ST, L2HCP250S521ST, L2HCP250S313ST, L2HCP250S179ST, L2HCP250S107ST, L2HCP350S1458ST, L2HCP350S972ST, L2HCP350S729ST, L2HCP350S438ST, L2HCP350S250ST, L2HCP350S150ST, L2HCP500S1190T, L2HCP500S1042ST, L2HCP500S781ST, L2HCP500S446ST, L2HCP500S357ST, L2HCP500S260ST, L2HCP500S208ST, L2HCP500S167ST, L2HCP500S133ST, L2HCP600S1667ST, L2HCP600S1420ST, L2HCP600S1250ST, L2HCP600S937ST, L2HCP600S536ST, L2HCP600S428ST, L2HCP600S313ST, L2HCP600S250ST, L2HCP600S200ST, L2HCP600S160ST, L2HCP680S1420ST, L2HCP680S1417ST, L2HCP680S1000ST, L2HCP680S571ST, L2HCP680S444ST, L2HCP680S333ST, L2HCP680S267ST, L2HCP680S213ST, L2HCP680S174ST, L2HCP720S1756ST, L2HCP720S1500ST, L2HCP720S1059ST, L2HCP720S605ST, L2HCP720S471ST, L2HCP720S353ST, L2HCP720S282ST, L2HCP720S226ST, L2HCP720S184ST, L2HCP1200S2500ST, L2HCP1200S1765ST, L2HCP1200S1008ST, L2HCP1200S784ST, L2HCP1200S588ST

Legacy Model Numbers
