APS-VPR Series "The Topaz"

Description

“The Topaz” is an AC-DC DIN Rail Voltage Protection Relay. It features an input voltage of 160-600Vac. It’s low profile and convection cooling help to manage space on your DIN rail while eliminating the need for fans or forced air cooling. “The Topaz” comes equipped with LED indicators,3Ø - 3 Wire, 3Ø - 4 Wire Input, and True RMS Measurement making it an ideal candidate for process control, traffic and transportation systems, factory automation, and much more.

APS-VPR Series "The Topaz"
End of life alternative

Specifications

Type:

DIN Voltage Protection Relay

Input Voltage:

170-290Vac, 160-300Vac(L-N), 280-520Vac(L-L), 280-600Vac(L-L)

Features/Options:

3Ø - 3 Wire, 3Ø - 4 Wire Input

Trip delay (T) : 0.2 to 10sec

True RMS Measurement

LED Indications: Power ON, Relay ON

IP20

Slim, Space saving design

Convection Cooling

Certifications:

CE, UL

Applications:

Process Control

Traffic & Transportation Systems

Factory Automation

Description

“The Topaz” is an AC-DC DIN Rail Voltage Protection Relay. It features an input voltage of 160-600Vac. It’s low profile and convection cooling help to manage space on your DIN rail while eliminating the need for fans or forced air cooling. “The Topaz” comes equipped with LED indicators,3Ø - 3 Wire, 3Ø - 4 Wire Input, and True RMS Measurement making it an ideal candidate for process control, traffic and transportation systems, factory automation, and much more.

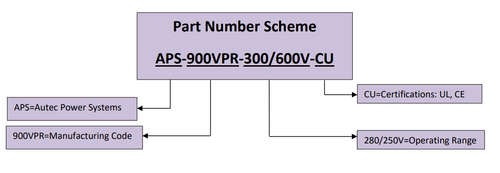

Model Numbers

APS-600VPR-170/290-CU, APS-900VPR-280/520V-CE, APS-900VPR-280/520V-CU, APS-900VPR-300/600V-CU

Legacy Model Numbers
