APS-MV Series "The Emerald"

Industrial

Description

The Emerald (APS-MV Series) is a digital voltmeter industrial power supply featuring a supply voltage of 110/230Vac. The Emerald has a liquid crystal display, 1Ø 2 Wire Electrical Network, and features True RMS measurement. Available sizes include 48x48mm, and 48x96mm. The unit may be applied to network systems, telecommunication systems, industrial equipment, and printers.

APS-MV Series "The Emerald"
End of life alternative

Specifications

Type:

Digital Voltmeter

Supply Voltage:

110/230Vac

Options:

Class 0.5 Accuracy

True RMS Measurement

Analog-style Bar Graph Indication

1Ø 2 Wire Electrical Network

IP51

Liquid Crystal Display

Mounting:

Panel

Dimensions:

48x48mm

48x96mm

Certifications:

CE, UL

Description

The Emerald (APS-MV Series) is a digital voltmeter industrial power supply featuring a supply voltage of 110/230Vac. The Emerald has a liquid crystal display, 1Ø 2 Wire Electrical Network, and features True RMS measurement. Available sizes include 48x48mm, and 48x96mm. The unit may be applied to network systems, telecommunication systems, industrial equipment, and printers.

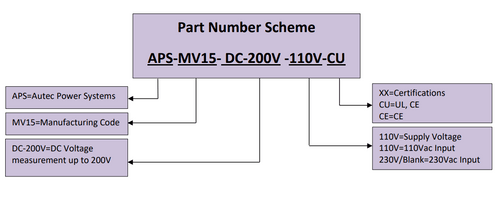

Model Numbers

APS-MV15, APS-MV15-230V-CE, APS-MV15-CU, APS-MV15-DC-200V-110V-CU, APS-MV15-110V-CU, APS-MV507, APS-MV507-CU, APS-MV507-110V, APS-MV507-110V-CU

Legacy Model Numbers
